Mono In Line Strainers
Mono Type Strainers provide a simple and efficient method of protecting vital pipeline equipment and reducing expensive plant maintenance. Choosing the correct strainer will provide protection for your downstream process equipment, including: valves, pumps, compressors, heat exchangers, flow meters and spray nozzles.
The advantages of using an MIL strainer include:
- Positive retention of debris
- Simple installation
- Minimal pressure drop
We can supply a range of MIL Type Strainers in a variety of sizes, materials and filtration ratings:

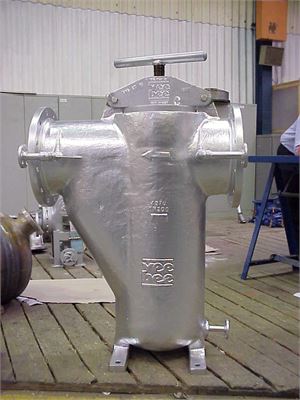

Quick Release Cover
Sizes: 1/2" (15mm) to 36"+ (900mm+)
Flanged Ends ANSI, BS4504 (DIN, PN), BS10
Butt Weld ends - Schedule as required
Screwed Ends API, BSP, NPT
Various cast materials of construction
Maximum pressure ratings ANSI Class 300lb
Wide range of screening materials available

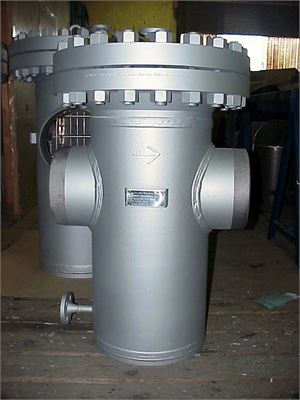

Bolted Cover
Sizes: 1/2" (15mm) to 36"+ (900mm+)
Flanged Ends ANSI, BS4504 (DIN, PN), BS10
Butt Weld ends - Schedule as required
Various cast materials of construction
Maximum pressure ratings ANSI Class 2500lb
Wide range of screening materials available

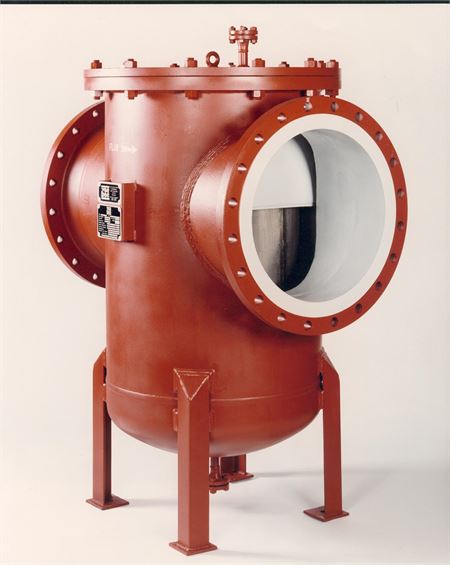

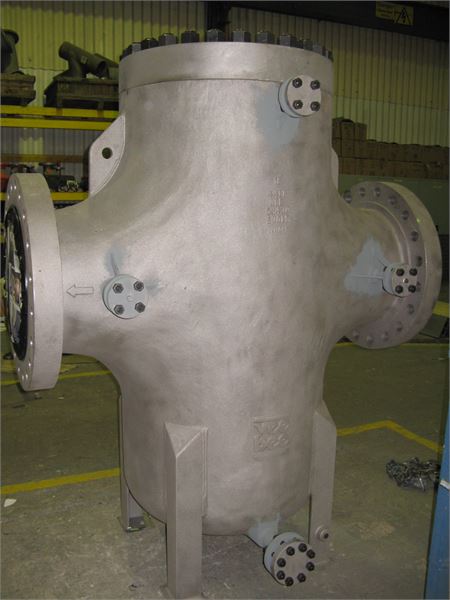

Fabrication Mono
Sizes: 1/2" (15mm) to 78"+ (1980mm+)
Flanged Ends ANSI, BS4504, DIN, BS10, JIS
Butt Weld ends from Schedule 40 to Schedule 100 + Special Schedule
Carbon Steel, Low Temperature Steel, Stainless steel, Duplex S/S Alloy Steel or other materials available
Maximum pressure rating class 2500lb+ (172 Barg+)
Contact us for further information or to discuss your strainer requirements.
