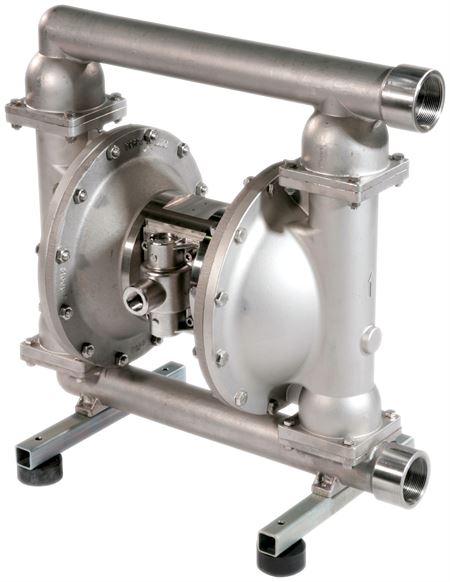

Metallic Pumps
- Material options suitable for a wide range of applications
- Simple construction, easy to maintain
- Self-priming, ideal for emptying containers
- Pressures to 8.6 bar (125psi)
- Flow rates up to 180 litres/minute (48 gal/min)
- Bolted construction for greater integrity
- Weighted valve balls for high S.G. and viscous fluids
- Reliable pneumatic air valve
Contact us for further information or to discuss your pump application.
| B06 Metallic Pump |
| Delivery |
18 litres/min |
| Max. Working Pressure |
8.6 bar (125 PSI) |
| Max. Solid Particle Size |
1mm |
| Air Inlet |
1/4" NPT |
| Temperature Limits |
Determined by Elastomers |
| Suction Lift (Dry) |
1.5 metres |
| Suction Lift (Wet) |
4.1 metres |
| Fluid Inlet / Outlet |
1/4" BSP |
| Installation |
Wall or surface mounted |
| Accessories Included |
Exhaust Air Silencer |
| B15 Metallic Pump |
| Delivery |
60 litres/min |
| Max. Working Pressure |
8.6 bar (125 PSI) |
| Max. Solid Particle Size |
2mm |
| Air Inlet |
1/4" NPT |
| Temperature Limits |
Determined by Elastomers |
| Suction Lift (Dry) |
4.6 metres |
| Suction Lift (Wet) |
6.1 metres |
| Fluid Inlet / Outlet |
1/2" BSP |
| Installation |
Wall or surface mounted |
| Accessories Included |
Exhaust Air Silencer |
| B25 Metallic Pump |
| Delivery |
180 litres/min |
| Max. Working Pressure |
8.6 bar (125 PSI) |
| Max. Solid Particle Size |
3mm |
| Air Inlet |
3/8" NPT |
| Temperature Limits |
Determined by Elastomers |
| Suction Lift (Dry) |
6.1 metres |
| Suction Lift (Wet) |
7.6 metres |
| Fluid Inlet / Outlet |
1" BSP |
| Installation |
Wall or surface mounted |
| Accessories Included |
Exhaust Air Silencer |
| B40 Metallic Pump |
| Delivery |
320 litres/min |
| Max. Working Pressure |
8.6 bar (125 PSI) |
| Max. Solid Particle Size |
6mm |
| Air Inlet |
3/8" NPT |
| Temperature Limits |
Determined by Elastomers |
| Suction Lift (Dry) |
6.1 metres |
| Suction Lift (Wet) |
7.6 metres |
| Fluid Inlet / Outlet |
1 1/2" BSP |
| Installation |
Surface mounted |
| Accessories Included |
Exhaust Air Silencer |
| B50 Metallic Pump |
| Delivery |
530 litres/min |
| Max. Working Pressure |
8.6 bar (125 PSI) |
| Max. Solid Particle Size |
6mm |
| Air Inlet |
3/4" NPT |
| Temperature Limits |
Determined by Elastomers |
| Suction Lift (Dry) |
6.1 metres |
| Suction Lift (Wet) |
7.6 metres |
| Fluid Inlet / Outlet |
2" BSP |
| Installation |
Surface mounted |
| Accessories Included |
Exhaust Air Silencer |
| B75 Metallic Pump |
| Delivery |
889 litres/min |
| Max. Working Pressure |
8.6 bar (125 PSI) |
| Max. Solid Particle Size |
10mm |
| Air Inlet |
3/4" NPT |
| Temperature Limits |
Determined by Elastomers |
| Suction Lift (Dry) |
4.0 metres |
| Suction Lift (Wet) |
|
| Fluid Inlet / Outlet |
3" BSP Tapered (End Ported) DIN flanged (Centre Ported) |
| Installation |
Surface mounted |
| Accessories Included |
Exhaust Air Silencer |
| X25 Metallic Flap Valve Pump |
| Delivery |
265 litres/min |
| Max. Working Pressure |
8.6 bar (125 PSI) |
| Max. Solid Particle Size |
25mm |
| Air Inlet |
1/2" NPT |
| Temperature Limits |
Determined by Elastomers |
| Suction Lift (Dry) |
5.8 metres |
| Suction Lift (Wet) |
|
| Fluid Inlet / Outlet |
1" BSP Tapered / NPT |
| Installation |
Surface mounted |
| Accessories Included |
Exhaust Air Silencer |
| X50 Metallic Flap Valve Pump |
| Delivery |
530 litres/min |
| Max. Working Pressure |
8.6 bar (125 PSI) |
| Max. Solid Particle Size |
50mm |
| Air Inlet |
3/4" NPT |
| Temperature Limits |
Determined by Elastomers |
| Suction Lift (Dry) |
7.3 metres |
| Suction Lift (Wet) |
|
| Fluid Inlet / Outlet |
2" BSP |
| Installation |
Surface mounted |
| Accessories Included |
Exhaust Air Silencer |
| X75 Metallic Flap Valve Pump |
| Delivery |
998 litres/min |
| Max. Working Pressure |
8.6 bar (125 PSI) |
| Max. Solid Particle Size |
75mm |
| Air Inlet |
1/2" NPT |
| Temperature Limits |
Determined by Elastomers |
| Suction Lift (Dry) |
5.5 metres |
| Suction Lift (Wet) |
|
| Fluid Inlet / Outlet |
3" ANSI flanged |
| Installation |
Surface mounted |
| Accessories Included |
Exhaust Air Silencer |
