Viking - Internal Gear Pump
Internal Gear Pump
The internal gear pumping principle was invented by Jens Nielsen, one of the founders of Viking Pump.

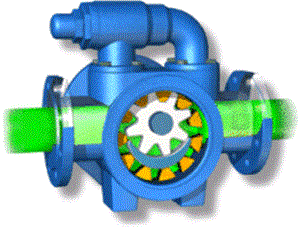

It uses two rotating gears which un-mesh at the suction side of the pump to create a vacuum that pulls fluid into the pump. The spaces between the gear teeth transport the fluid on either side of a crescent to the discharge side, and then the gears re-mesh to discharge the fluid.
The Range includes:
• Universal Seal Pumps
• Universal Magnetic Drive Pumps
• XPD 676 Internal Gear Pumps
• Hygienic Internal Gear Pumps
• Asphalt Internal Gear Pumps
• Abrasive Liquid Internal Gear Pumps
• Ammonia Internal Gear Pumps
Contact us for further information or to discuss your pump application.

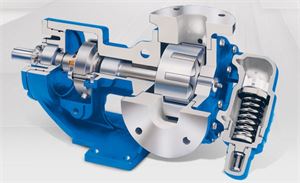

| Universal Seal Internal Gear Pumps |
- Heavy
duty foot mounted process pump that can accommodate a very wide range of
sealing solutions.
- Cast
Iron, Ductile Iron, Steel or Stainless Steel Construction.
- Capacity
to 365m3/ hr
- Differential
Pressure to 14 bar
- Viscosity
Range 1 to 440,000 centistokes
- Temperature
Range -85oC to 430oC
|
|
Universal Mag Drive Internal Gear Pumps
|
- The
perfect choice for applications where product leakage cannot be tolerated.
- Cast
Iron, Steel or Stainless Steel Construction.
- Capacity
to 115m3/ hr
- Differential
Pressure to 14 bar
- Viscosity
Range 1 to 55,000 centistokes
- Temperature
Range -85oC to 260oC
|
|
XPD 676 Internal Gear Pump
|
- Heavy duty foot mounted process pump designed in compliance with API 676.
- Steel Construction.
- Capacity to 250m3/hr
- Differential Pressure to 14 bar
- Viscosity Range 1 to 7,700 centistokes
- Temperature Range -29oC to 205oC
|
|
Hygienic Internal Gear Pumps
|
- EHEDG compliant hygienic design. Only one shaft seal, no timing gears, no oil/grease changing and fast CIP or COP.
- Stainless Steel Construction.
- Capacity to 73m3/ hr
- Differential Pressure to 10 bar
- Viscosity Range 1 to 220,000 centistokes
- Temperature Range -20oC to 107oC
|
|
Internal Gear Pumps for Asphalt
|
- Cast Iron Construction.
- Capacity to 365m3/ hr
- Differential Pressure to 14 bar
- Viscosity Range 1 to 440,000 centistokes
- Temperature Range -50oC to 230oC
|
|
Internal Gear Pumps for Abrasive Liquid
|
- Cast Iron Construction.
- Capacity to 36m3/ hr
- Differential Pressure to 10 bar
- Viscosity Range 1 to 160,000 centistokes
- Temperature Range -50oC to 120oC
|
|
Internal Gear Pumps for Ammonia
|
- Cast Iron Construction.
- Capacity to 14 m3/hr
- Differential Pressure to 3.5 bar
- Temperature Range to -40oC
|
Features + Benefits
- Reliable and Easy to Maintain - only two moving parts.
- Adjustable End Clearance - For low or high viscosities, high temperatures, or to compensate for wear over time.
- Shaft Seal Options - Including packed gland, lip seal, component seal, cartridge seal and sealless mag drive options.
- Porting Options - Viking's broadest selection of port locations, configurations, and types.
- Minimal Pulsation - For accurate flow measurement.
- One Shaft Seal - More reliable and lower cost than two used on timed lobe and screw pumps.
- Compact, Close-Coupled Options - For motor speed operation or with gearmotors
Performance
- Max. Capacity - to 1,600 GPM (365 M³/Hr)
- Max. Pressure - to 250 PSI (17 BAR)
- Viscosity Range - 28 to 2,000,000 SSU (1 to 440,000 cS)
- Temperature Range - (-85°C to +430°C)
